Steel Composition

Hot dip galvanising is a functional coating with superior protection from corrosion for steel articles when measured against most other coating systems. The corrosion resistance of hot dip galvanised coatings (ISO 14713) is directly related to the thickness of the coating (AS/NZS 4680).

Certain elements, in particular silicon (Si) and phosphorus (P), in the steel can affect hot dip galvanising by prolonging the reaction between iron and molten zinc. Generally, this results in the outer pure zinc layer, which is responsible for the shiny metallic finish, being consumed and the dull grey zinc-iron alloys being exposed. In addition, the steel composition can sometimes affect the coating’s resistance to materials handling damage. The prior history of the steel (e.g. whether hot rolled or cold rolled) can also affect its reaction with molten zinc. Therefore, certain steel compositions can achieve more consistent coatings than others can with regard to appearance, thickness, materials handling and smoothness.

Figure 1 shows the effect of silicon on galvanised coating thickness (first described by Sandelin in 1940), while simplified guidance on steel compositions that are associated with particular coating characteristics is provided in Table 1.

Where aesthetics are important or where particular coating thickness, materials handling or surface smoothness criteria exist, specialist advice on steel selection should be sought prior to fabrication of the article or hot dip galvanising. Steels with the chemistry shown in Category A & B (see Figure 1 & Table 1) usually provide the best results for aesthetics and corrosion protection respectively. Australian-made structural steels normally comply with the coating thickness requirements of AS/NZS 4680.

Steels with chemistry shown in Category X (Si ≤ 0.01%) in Table 1 are deoxidised with aluminium in the manufacturing process (known as aluminium fully killed, fine grained steels). These steels sometimes produce coating thicknesses under the AS/NZS 4680 requirements using normal galvanising processes.

For steels known to produce thinner coatings, abrasive blasting the steel surface prior to galvanising will increase the surface area and produce a thicker coating. This can change the appearance of the galvanised article and/or increase the roughness of the finished surface and will increase the cost of the finished article. It is therefore best practice to consider the durability requirement of the article prior to requesting blasting of the steel, if the coating thickness achieved without blasting will meet the specified design life.

Steels with the chemistry shown in Category C & D (Table 1) are known as highly reactive steels and these can cause excessively thick galvanised coatings to form. These thicker coatings are also known to be somewhat less resistant to handling compared to the standard coating; however, they can also provide increased corrosion resistance. The presence of alloying elements (e.g. nickel) in the zinc melt can have a significant effect on the coating characteristics indicated in Table/Figure 1.

composition chart

Table 1

Typical coating characteristics related to steel composition.

Category Si and Pi relationship Appearance Resistance to Meshanical Damage Mass of Coating Typical Use
X Si ≤ 0.010% Excellent, typically shiny Excellent Minimum. Can sometimes be under Standard For aesthetic and corrosion protection

Hot Rolled: Si ≤ 0.04%; Si+2.5P ≤ 0.90%

Cold Rolled: Si + 2.5P ≤ 0.04%

Excellent, typically shiny Excellent Standard. Generally superior to the normal requirement For compliance with Standard and excellent corrosion protection
B 0.14% < Si ≤ 0.25% Good, can tend to mottled or dull with increasing steel thickness Good Always heavier than normal. Best specification for corrosive environments Optimum long-term corrosion protection
C 0.04% < Si ≤ 0.14% Can be dark and coarse Reduced Extra Heavy In non-abrasive environments can provide extreme corrosion protection
D Si > 0.25% "" "" "" ""

steel composition galv example

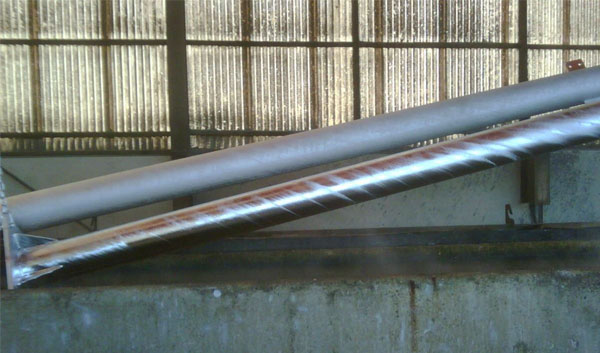

Figure 2: Two posts with different steel compositions after being galvanised at the same time. The top post is typical of steel from Categories C & D while the bottom appearance is typical of steel from Categories X & A. Both products comply with AS/NZS 4680.

steel composition galv example 2

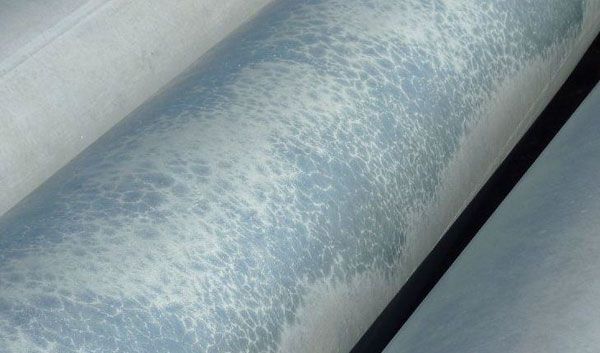

Figure 3: This galvanised pipe’s steel composition is likely to be in Category B, shown by the scale-like appearance of the coating, where some on the Fe/Zn alloy has extended through to the surface. This product complies with AS/NZS 4680. Over time, the surface will change to a more even dull grey finish.

steel composition galv example 3

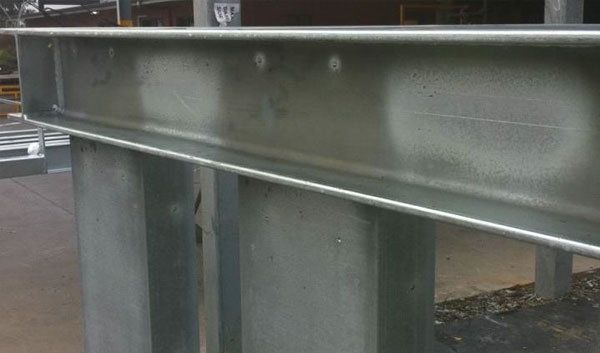

Figure 4: The patchy appearance of this galvanised coating is due to both Si content and thickness of the steel. The areas of shiny appearance have cooled faster and pure zinc has solidified on the surface. The other areas have cooled at a slower rate and the galvanising reaction continued until the pure zinc was consumed and only dull zinc-iron alloys are showing at the surface. This can occur with steels in Category B and complies with AS/NZS 4680. Over time, the surface will change to a more even dull grey finish.

steel composition galv example 4

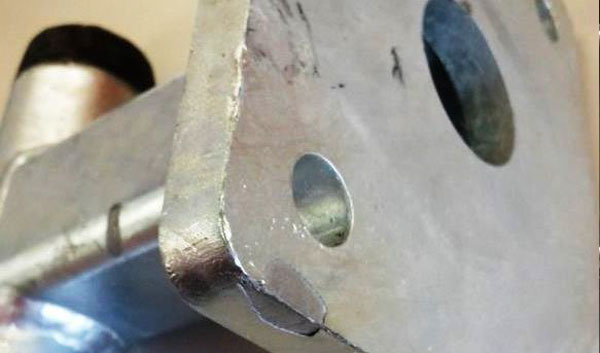

Figure 5: Handling has caused some damage to the edge of this thick galvanised coating, where some of the coating has been chipped. Thick coatings can result when steels from Categories C & D are galvanized. It is likely the coating will still meet the thickness requirements of AS/NZS 4680, and is acceptable, so long as the remaining product firmly adheres to the substrate.

steel composition galv example 5

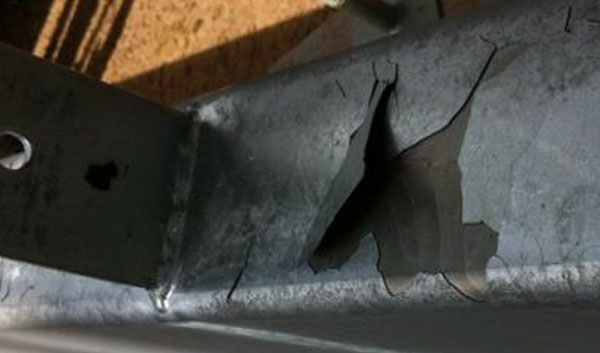

Figure 6: Category D steels are most likely to produce a galvanized coating where thick, brittle Fe/Zn alloy layers are formed and flaking occurs due to the excessive coating thickness. This article will not meet the requirements of AS/NZS 4680 due to the excessive flaking and should be rejected.

steel composition galv example 6

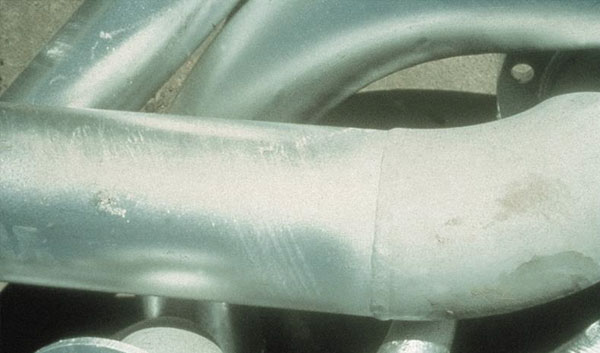

Figure 7: The shiny surface (to the left) is typical of Category X, A & B, while the duller coating (to the right) is typical of Category C & D. Over time, the both coatings will weather and tend towards a similar dull grey colour. This product meets the requirements of AS/NZS 4680.

steel composition galv example 7

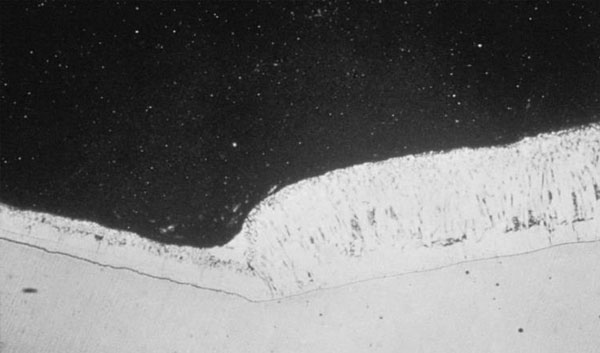

Figure 8: The join between the shiny and dull coatings of Figure 7 showing the thinner coating achieved in Category X, A & B on the left compared to the thicker and more brittle coating achieved with Category C & D to the right.

Material supplied by the GAA.
